PixCor® Products
Delivering the UV stability required for your high-refractive-index (RI) Extended Reality, Display, and Sensor applications.
PixCor® Core-Shell Technology
PixCor® was developed to meet the same exacting performance standards as Pixelligent’s PixNIL® products, with the added benefit of dramatically improved UV stability. Our nanotechnology scientists created a proprietary core-shell design in which we surround our PixClear® Titania with a zirconia shell. This allows PixCor® enabled formulations to deliver the combined advantages of UV stability, high-refractive-index, low haze, and high transparency, resulting in far superior optical fidelity and image quality for pass-through optics applications.
Enabling Next-Generation
UV-Stable Optics
PixCor® is exclusively formulated into Pixelligent’s high-RI PixNIL® formulation product line, revolutionizing next-generation optoelectronic devices.
>85%, as compared to standard titania
<0.1%
Up to 1.9
>95%
<50nm
99.99% as measured by DLS
Improved UV Light Stability
Low Haze
High Refractive Index
High Transparency
Low Residual Layer Thickness
Narrow Particle Distribution
Improved UV Light Stability
>85%, as compared to standard titania
Low Haze
<0.1%
High Refractive Index
Up to 1.9
High Transparency
>95%
Low Residual Layer Thickness
<50nm
Narrow Particle Distribution
99.99% as measured by DLS
Advantages of PixCor®
PixCor® enabled formulations offer improved UV stability while maintaining high-RI, low haze, high transparency, and low residual layer thickness to deliver optimal optical properties and robust mechanical features. PixCor®-enabled PixNIL® formulations are available in solvent-containing versions and can be tailored to each customer’s specific device and process requirements, while solvent-free PixCor® formulations are offered through Pixelligent’s PixMicro™ product line.
Explore Our PixCor® Product Catalogue
PixNIL® SCS3-2S
Nanocrystal: PixClear Coreshell 20nm...
Learn More
PixMicro™ CS80
Nanocrystal: PixClear Coreshell 20nm...
Learn More
x

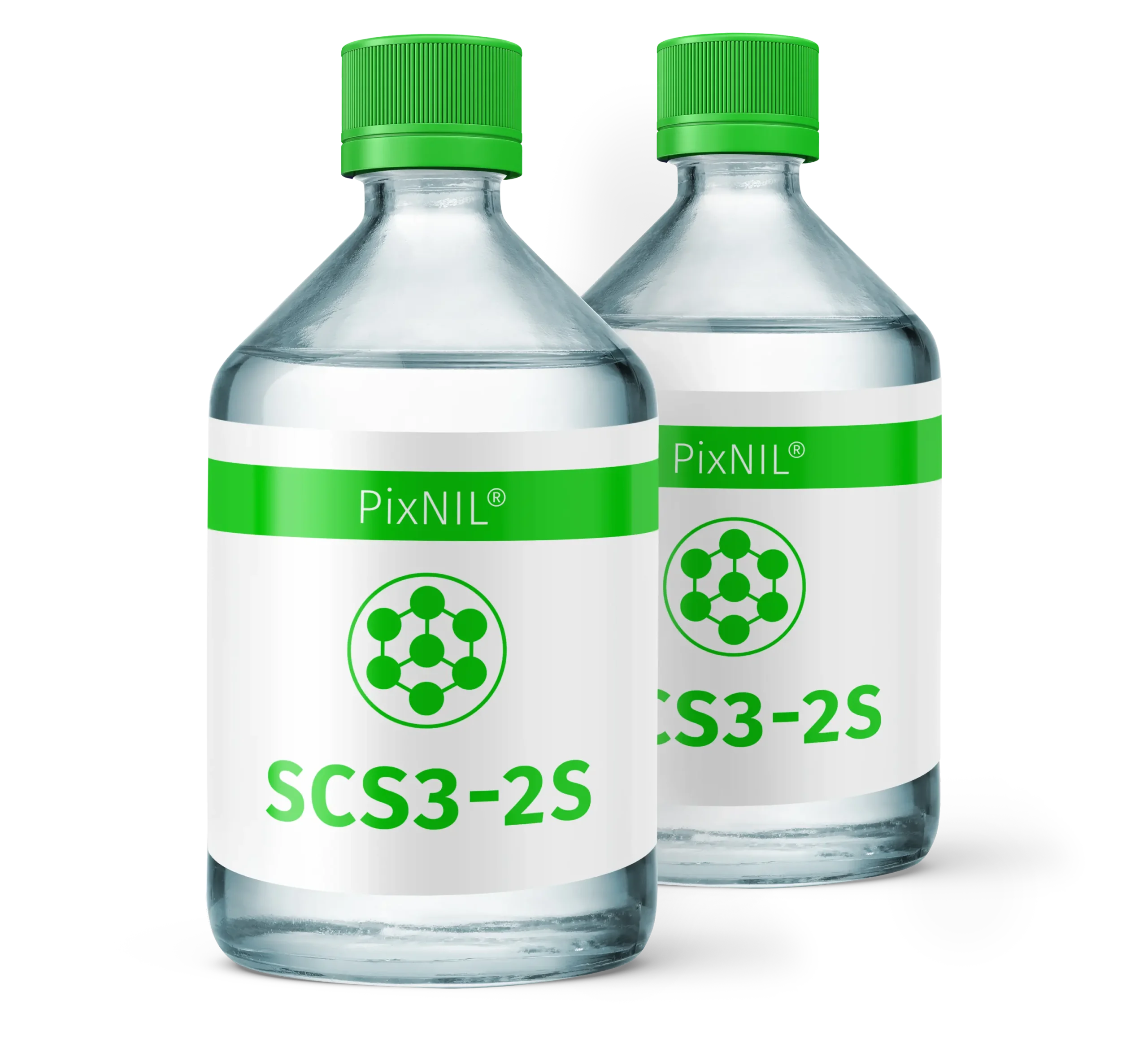

PixNIL® SCS3-2S
- Nanocrystal: PixClear Coreshell 20nm
- Solvent Type: PGMEA
- Dispensing Method: Spin Coat / Slot Die
- Refractive index: 1.8
- Percent Transparency: >90%
- Film Thickness Range: 0.1-1.5 μm
- Curing Method: UV
- Percent Haze: <0.1%
- Low shrinkage
- Excellent structural fidelity and mechanical properties
- Enables larger FOV and more immersive AR experience
Customized versions of PixNIL® Designer Composites™ available upon request
x
PixMicro™ CS80
- Nanocrystal: PixClear Coreshell 20nm
- Solvent Type: None
- Dispensing Method: Spin Coat / Slot Die
- Refractive index: 1.80
- Percent Transparency: >94%
- Film Thickness Range: 5 – 50 μm
- Curing Method: UV
- Percent Haze: <0.2%
- Low shrinkage
- Excellent structural fidelity and mechanical properties
Customized versions of PixMicro™ Designer Composites™ available upon request
PixCor® Compatibility
PixCor® core-shell dispersions are comprised of a proprietary Zirconia shell that surrounds a PixClear® Titania nanoparticle core.
PixCor® enabled PixNIL® formulations have demonstrated excellent nanoimprintability with leading nanoimprint tool makers and can deliver high aspect ratios of up to 6:1, resulting in better optical fidelity and image quality.
