PixClear® Optical Sensors

That’s Where PixClear® Comes In

PixClear high refractive index (HRI) nanocrystals dramatically improve optical and mechanical properties and performance in optical sensors and components. Applications include:

Wafer-Level Optics
CMOS Image Sensors
3D Sensors
Micro Lens Arrays
Diffractive Optical Elements
Gradient Index Optics (Visible or Short-Wave Infrared Wavelengths)

Made by our patented PixClearProcess®, our HRI nanocrystals are optimized for compatibility with various monomers and resins. When combined, the nanocomposite’s refractive index can be tuned from 1.65 to 1.9+ – without negatively impacting haze values. These materials can be incorporated into both films and optical structures with a wide range of thicknesses, depending on customers’ requirements.

BENEFITS

Tunable High Refractive Index

High Transperancy

High Hardness

Low Haze

Nanoimprintable

Jet Coating Capable

Solvent or Solvent-Free

PixJet® Inkjettable Formulations

Up to 1.65RI

PixJet^®SFZ5

Solvent Type: None
Dispensing Method: Inkjet
Refractive index (RI) of 1.65
>97% transmission across visible wavelengths
<0.2% haze
High Print Head Heating
Tunable Surface Tension
Excellent film thickness
Excellent wetting of display substrates

PixNIL® Nanoimprintable Formulations

Up to 1.9RI

PixNIL^® ST2

Solvent Type: PGMEA
Dispensing Method: Spin Coat / Slot Die / Jet Coat
Refractive index (RI) of 1.9
>93% transparency across visible wavelengths
<0.2% haze
Low shrinkage
Excellent structural fidelity and mechanical properties
Suitable for both nanoimprint and thin film applications

PixNIL^® SZ1

Solvent Type: PGMEA
Dispensing Method: Spin Coat / Slot Die / Jet Coat
Refractive index (RI) of 1.7
>97% transparency across visible wavelengths
<0.1% haze
Low shrinkage
Excellent structural fidelity and mechanical properties
Suitable for both nanoimprint and thin film applications

PixNIL^® SFT1

Solvent Type: None
Dispensing Method: Spin Coat / Slot Die / Jet Coat
Refractive index (RI) of 1.9
>93% transparency across visible wavelengths
<0.2% haze
Low shrinkage
Excellent structural fidelity and mechanical properties
Suitable for both nanoimprint and thin film applications

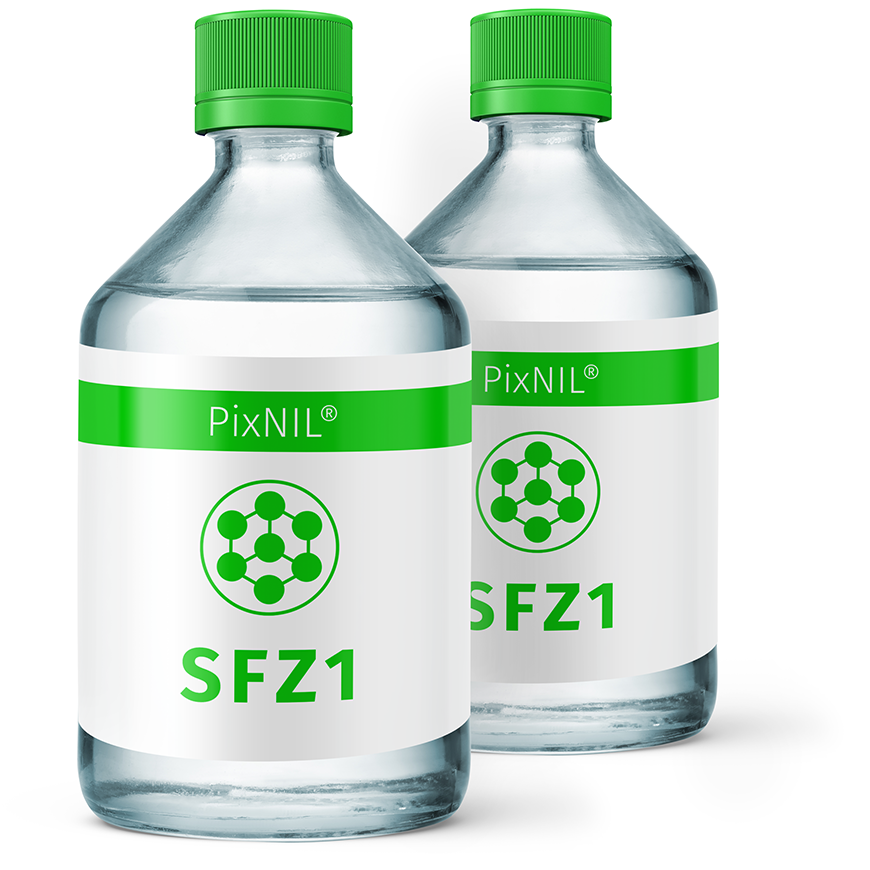

PixNIL^® SFZ1

Solvent Type: None
Dispensing Method: Spin Coat / Slot Die / Jet Coat
Refractive index (RI) of 1.7
>93% transparency across visible wavelengths
<0.2% haze
Low shrinkage
Excellent structural fidelity and mechanical properties
Suitable for both nanoimprint and thin film applications

PixClear® Titania Products

Up to 1.9RI

PTPG

Compatible with polar solvents
A 10nm capped TiO2 nanocrystal that contains no reactive functional groups designed for high compatibility in multiple polar solvents and monomers such as acrylates, siloxanes, and epoxies.
Custom formulations available upon request.

LTPF

Compatible with polar solvents
A 20nm capped TiO2 nanocrystal that contains acrylate functionality designed to crosslink with methacrylate and acrylate systems.
Larger nanocrystal provides the highest refractive index available on the market.
Custom formulations available upon request.

PixClear® Zirconia Products

UP TO 1.8RI

PCPC

Available in fully formulated products & dispersions.
Compatible with polar solvents
A 10nm capped ZrO2 nanocrystal that contains acrylate functionality designed crosslink with acrylate and vinyl monomers.
Balanced surface coverage that provides both improved formulation stability and dispersibility without sacriﬁcing refractive index.
Custom formulations available upon request.

PCPB

Compatible with polar solvents
A 10nm capped ZrO2 nanocrystal that contains methacrylate functionality designed to crosslink with methacrylate and acrylate systems.
Medium surface coverage of capping materials that provides improved dispersibility and high refractive index.
Custom formulations available upon request.

PCPR

Compatible with polar solvents
A 10nm capped ZrO2 nanocrystal that contains methacrylate functionality designed to crosslink in methacrylate and acrylate systems.
Highest surface coverage of capping materials and functionality that enables high crosslinking density and provides improved chemical resistance.
Custom formulations available upon request.

PCPG

Compatible with polar solvents
A 10nm capped ZrO2 nanocrystal that contains no reactive functional groups designed for high compatibility in multiple polar solvents and monomers such as acrylate, siloxane, and epoxy.
Lower surface coverage of capping materials that provides higher refractive indices.
Custom formulations available upon request.

PCPN

Compatible with polar solvents
A 10nm capped ZrO2 nanocrystal that contains no reactive functional groups designed for highest compatibility in multiple polar solvents and monomers such as acrylate, siloxane, and epoxy.
High surface coverage of capping materials provides improved compatibility and stability to chemical reactivity.
Custom formulations available upon request.

Nanocrystal Capping Variations and Impact on RI
