PixClear® For Displays
That’s Where PixClear® Comes In

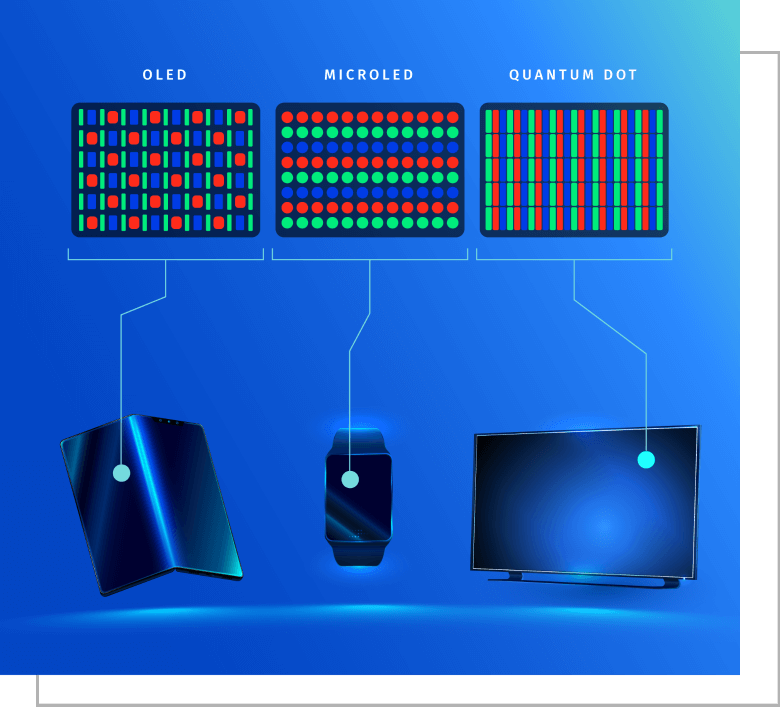

PixClear® allows for precise light management in next generation display applications where performance requirements are being pushed to their physical limits. Our materials can be utilized to tune the refractive index (RI) between multiple- mismatched layers in various OLED, MicroLED, and QD display applications. The ability to optimize the index-match allows for:
- Increased Light Outcoupling
- Reduced Heat Output
- Less Diffraction
- Minimized Reflection
- Lower Absorption
Pixelligent’s high refractive index (HRI) nanocrystals made by our patented PixClearProcess® for displays are optimized to be compatible with various monomers and resins, delivering a refractive index from 1.65 to 2.0+. In addition, the nanocomposites do not negatively impact haze values. Our PixClear® materials are compatible with existing manufacturing processes, including inkjet print, nanoimprint, photolithographic, and dispensing process equipment.
When deployed in OLED display applications, our PixClear Products have the potential to deliver up to 84 gigawatts of power savings annually.
High Refractive Index
High Transperancy
High Hardness
Low Haze
PixJet® Inkjettable Forumulations
PixJet®SFZ5
- Solvent Type: None
- Dispensing Method: Inkjet
- Refractive index (RI) of 1.65
- >97% transmission across visible wavelengths
- <0.2% haze
- High Print Head Heating
- Tunable Surface Tension
- Excellent film thickness
- Excellent wetting of display substrates
PixClear® Titania Products

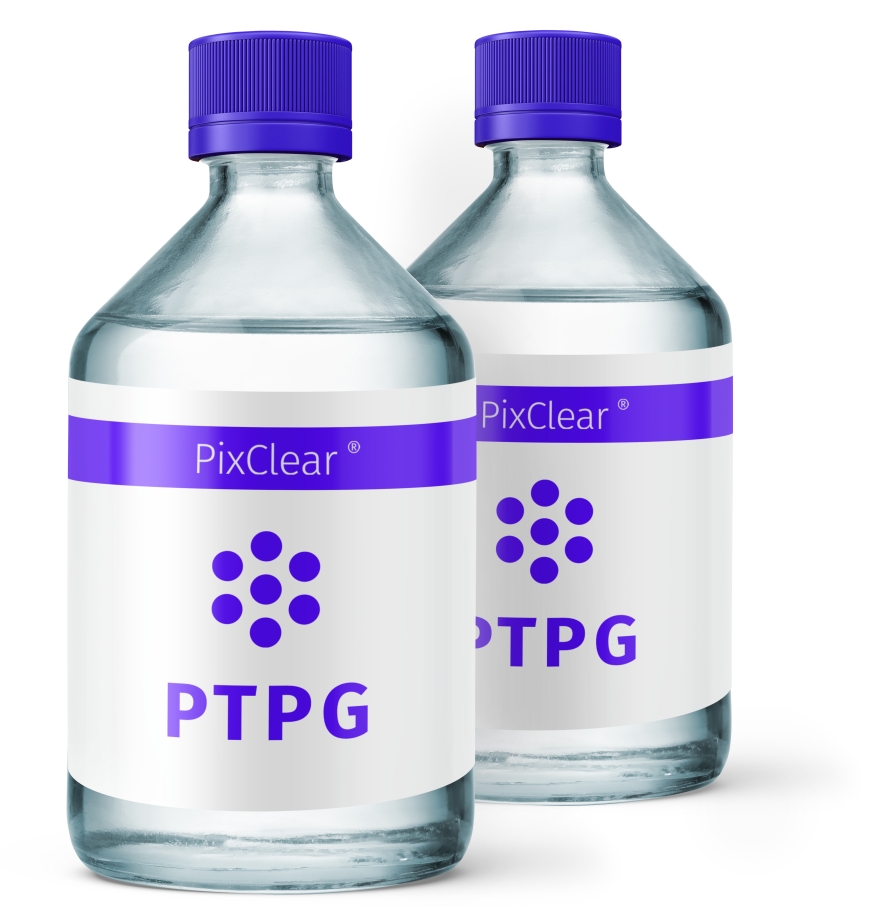

PTPG
- Compatible with polar solvents
- A 10nm capped TiO2 nanocrystal that contains no reactive functional groups designed for high compatibility in multiple polar solvents and monomers such as acrylates, siloxanes, and epoxies.
- Custom formulations available upon request.

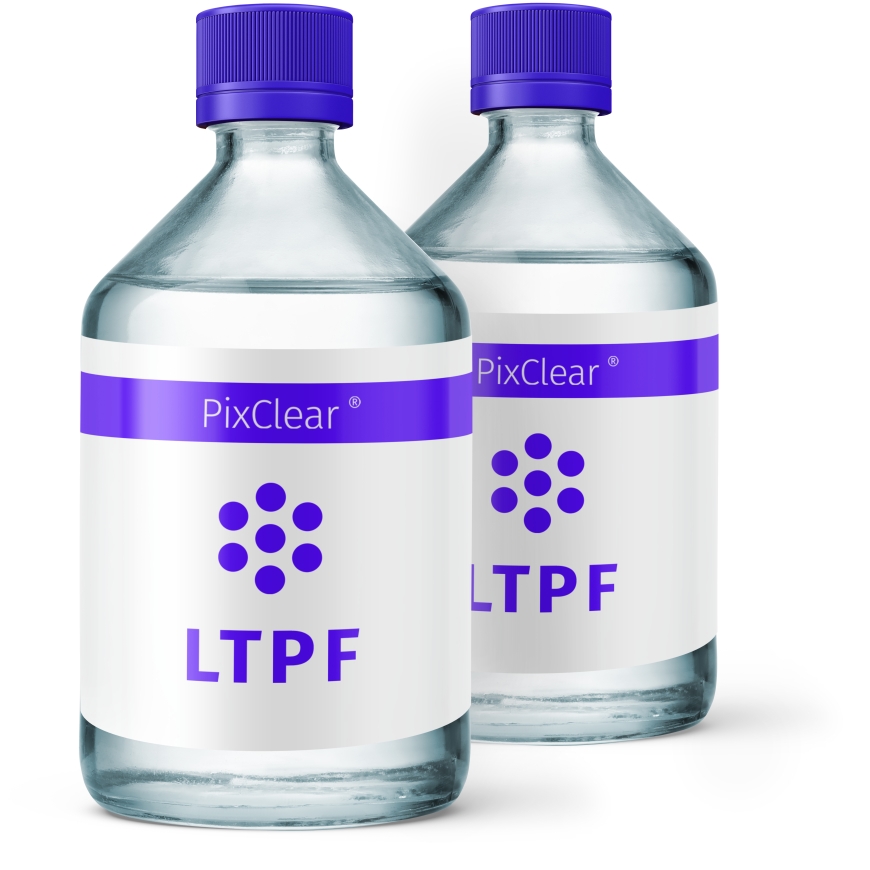

LTPF
- Compatible with polar solvents
- A 20nm capped TiO2 nanocrystal that contains acrylate functionality designed to crosslink with methacrylate and acrylate systems.
- Larger nanocrystal provides the highest refractive index available on the market.
- Custom formulations available upon request.
PixClear® Zirconia Products

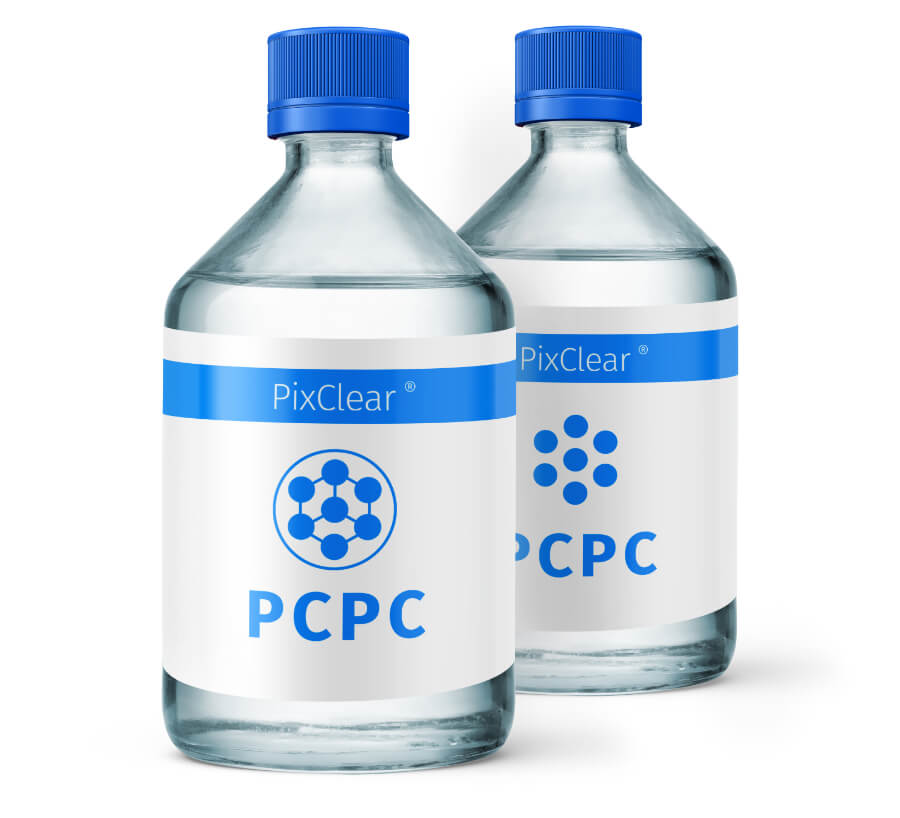

PCPC
- Available in fully formulated products & dispersions.
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains acrylate functionality designed crosslink with acrylate and vinyl monomers.
- Balanced surface coverage that provides both improved formulation stability and dispersibility without sacrificing refractive index.
- Custom formulations available upon request.
PCPB
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains methacrylate functionality designed to crosslink with methacrylate and acrylate systems.
- Medium surface coverage of capping materials that provides improved dispersibility and high refractive index.
- Custom formulations available upon request.

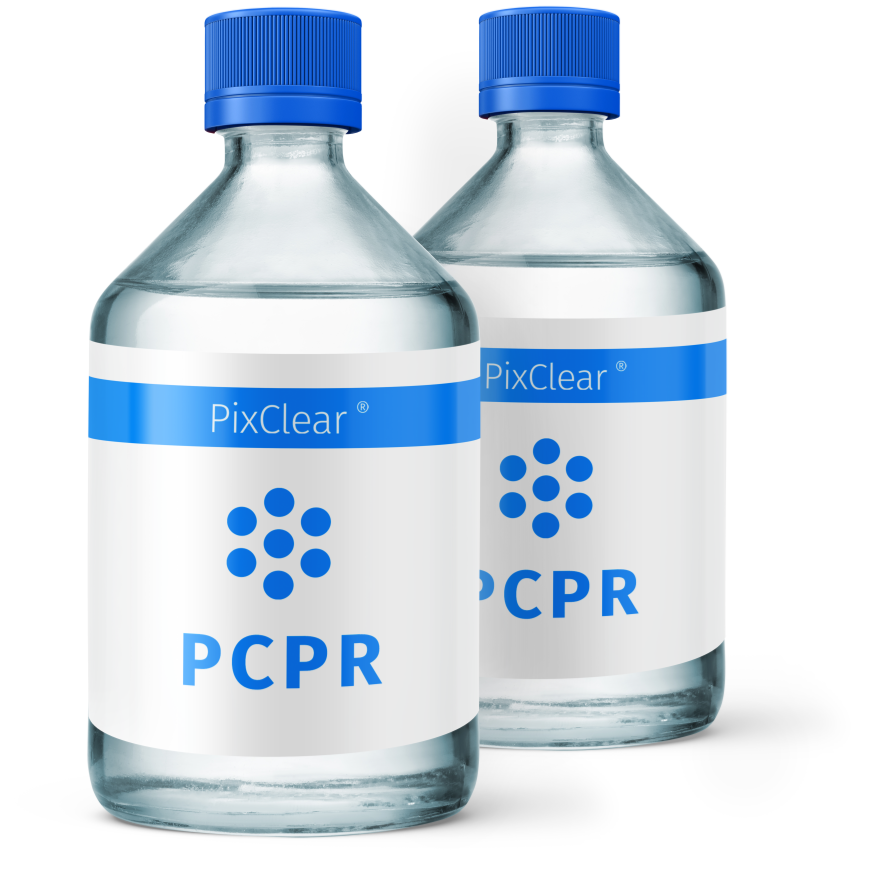

PCPR
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains methacrylate functionality designed to crosslink in methacrylate and acrylate systems.
- Highest surface coverage of capping materials and functionality that enables high crosslinking density and provides improved chemical resistance.
- Custom formulations available upon request.

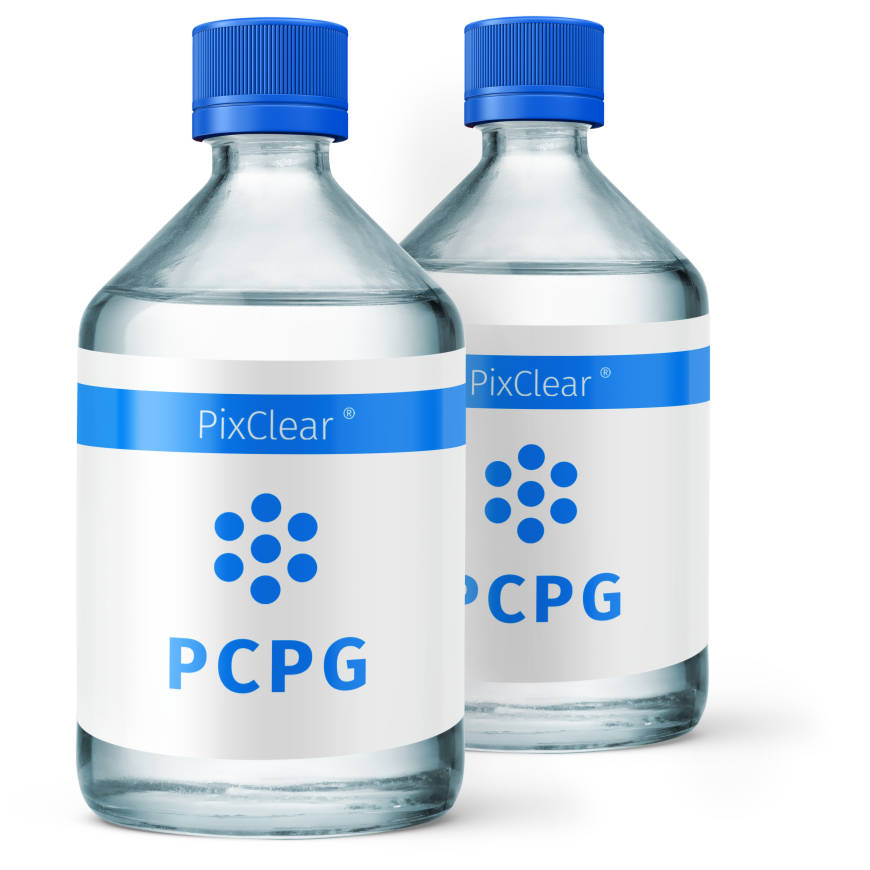

PCPG
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains no reactive functional groups designed for high compatibility in multiple polar solvents and monomers such as acrylate, siloxane, and epoxy.
- Lower surface coverage of capping materials that provides higher refractive indices.
- Custom formulations available upon request.

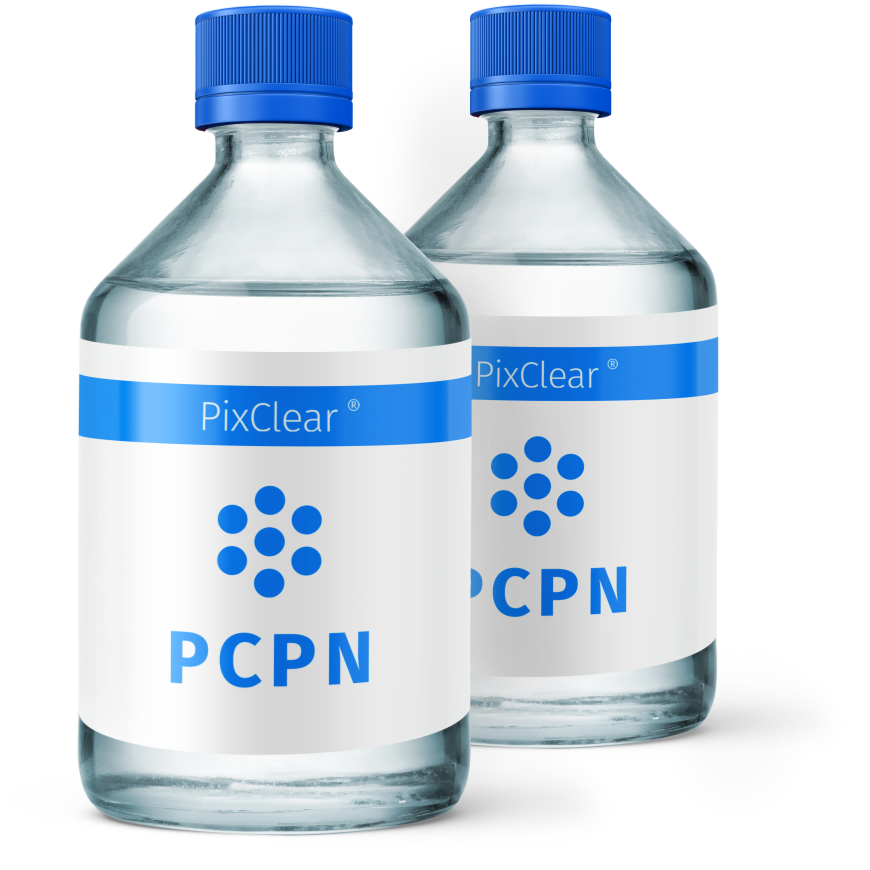

PCPN
- Compatible with polar solvents
- A 10nm capped ZrO2 nanocrystal that contains no reactive functional groups designed for highest compatibility in multiple polar solvents and monomers such as acrylate, siloxane, and epoxy.
- High surface coverage of capping materials provides improved compatibility and stability to chemical reactivity.
- Custom formulations available upon request.

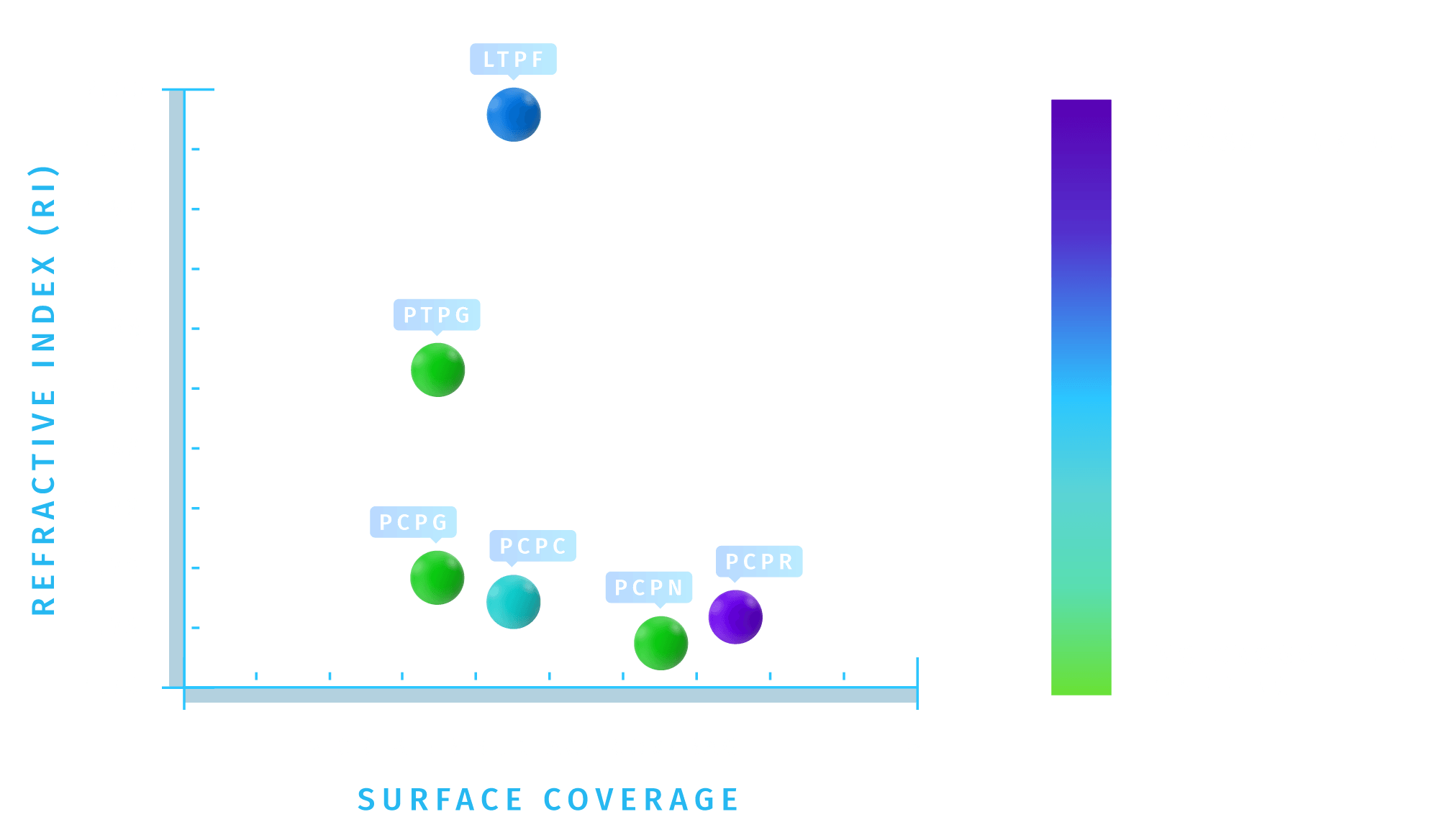

Nanocrystal Capping Variations and Impact on RI
